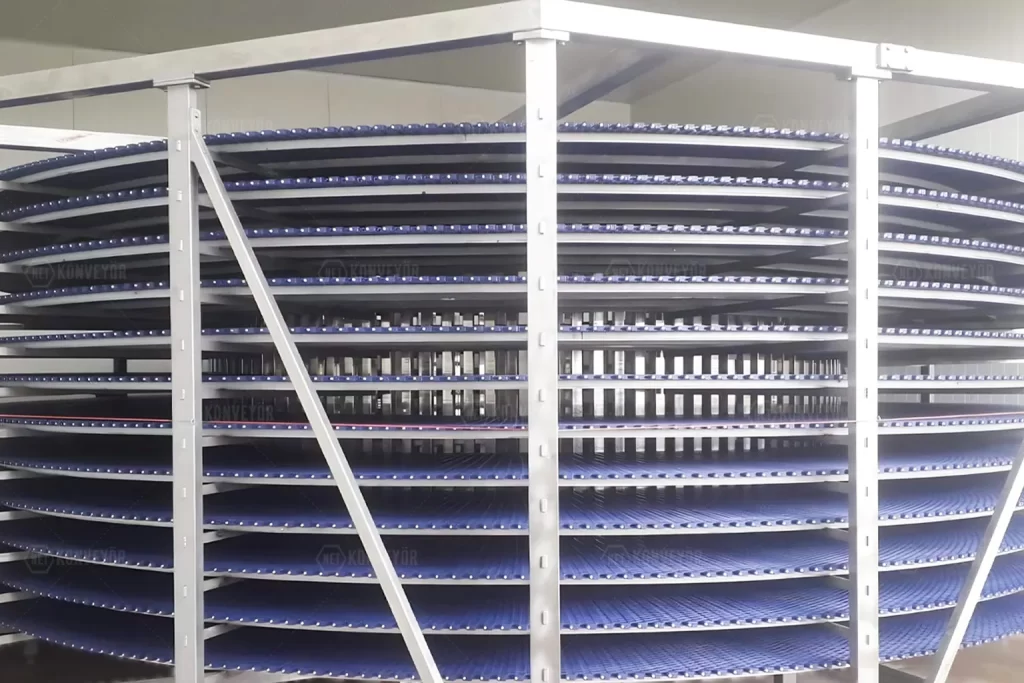

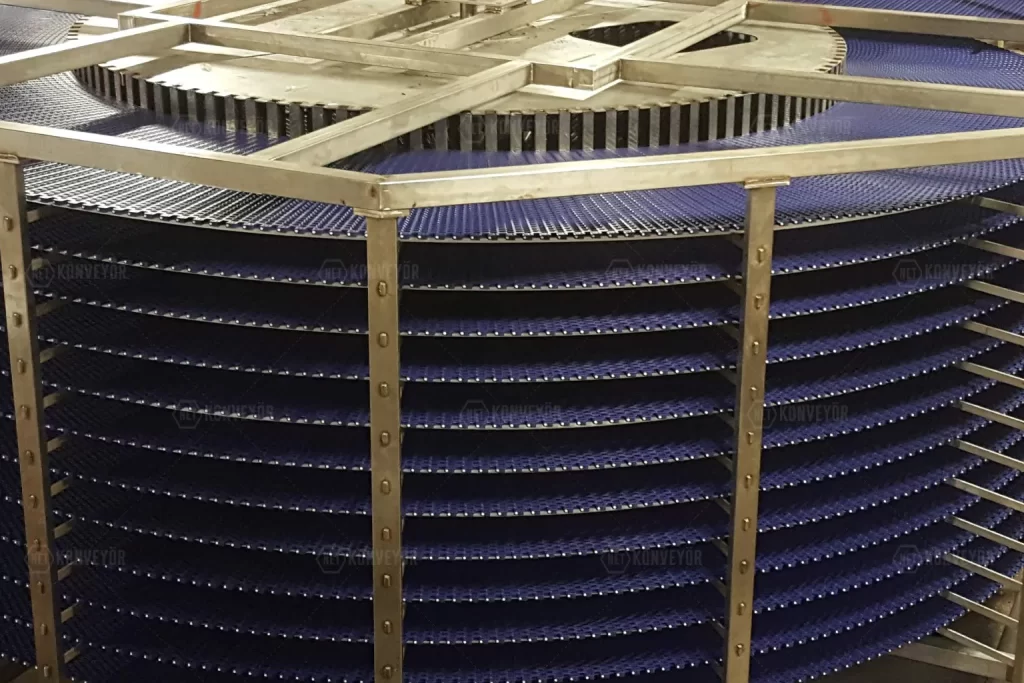

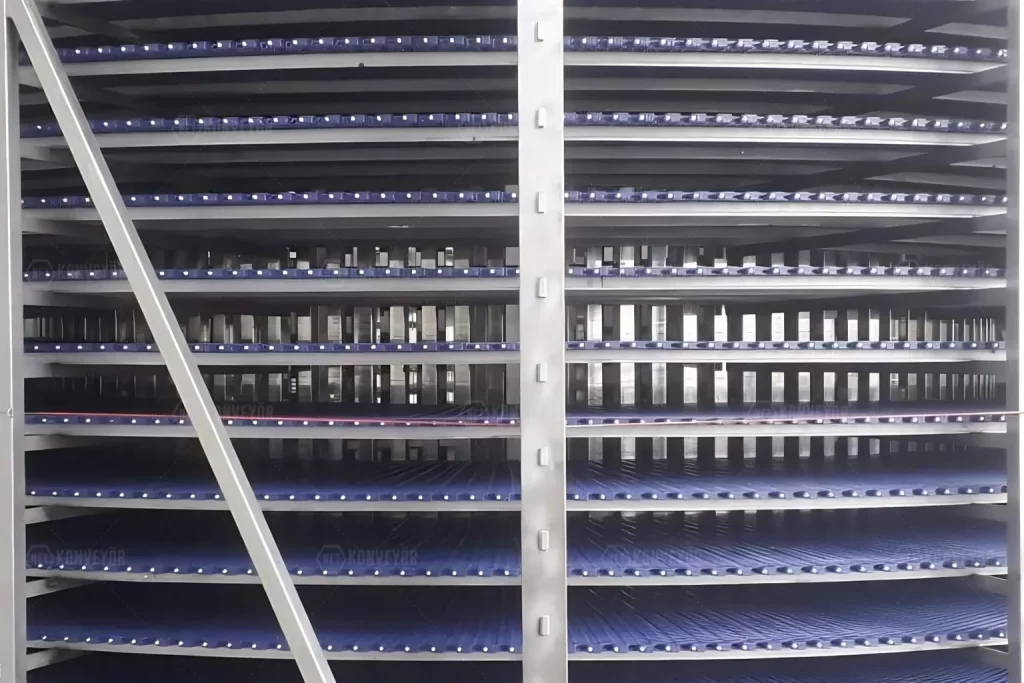

Spiral Conveyor

Spiral conveyors are advanced conveyors with a compact design that enable the transportation of products both horizontally and vertically. They are particularly used in processes such as cooling, freezing, proofing, and thermal treatment, where products need to be conveyed in a controlled manner for a specific period of time.

Spiral conveyors are systems that move products upward or downward in multiple tiers. Thanks to their spiral structure, products travel a longer distance within a limited footprint, allowing the required process time to be achieved within the production line.

Remember! There is no single type of conveyor for every application; each production process requires its own tailored solution.

GET A QUOTE NOW

SPIRAL CONVEYORS

Spiral conveyors are among the most advanced conveying solutions, especially in food and process-oriented production lines, providing optimization in time, space, and product quality. They enable controlled product handling, maximizing production efficiency.

Spiral conveyors are tiered conveying systems designed to transport products upward or downward within a compact footprint. The belt or wire structure progresses in multiple levels, allowing products to remain on the line for a longer duration. This enables not only transportation but also process operations such as cooling, resting, drying, or thermal treatment during conveying.

Motor Power

0,75 – 5 kW

Load Capacity

0 – 30 kg

Conveyor Speed

1 – 20 m/min

Applications

Primarily used in the food and beverage industry; including bakery and confectionery, meat and poultry processing plants, dairy production, fruit and vegetable processing, and frozen food sectors. In addition, they provide effective solutions in various industries such as pharmaceuticals and chemicals, agricultural processing facilities, cold storage and logistics systems, as well as industrial drying and process lines. Thanks to their ability to operate at high capacity within limited spaces, spiral conveyors increase production efficiency while ensuring precise control of process durations.

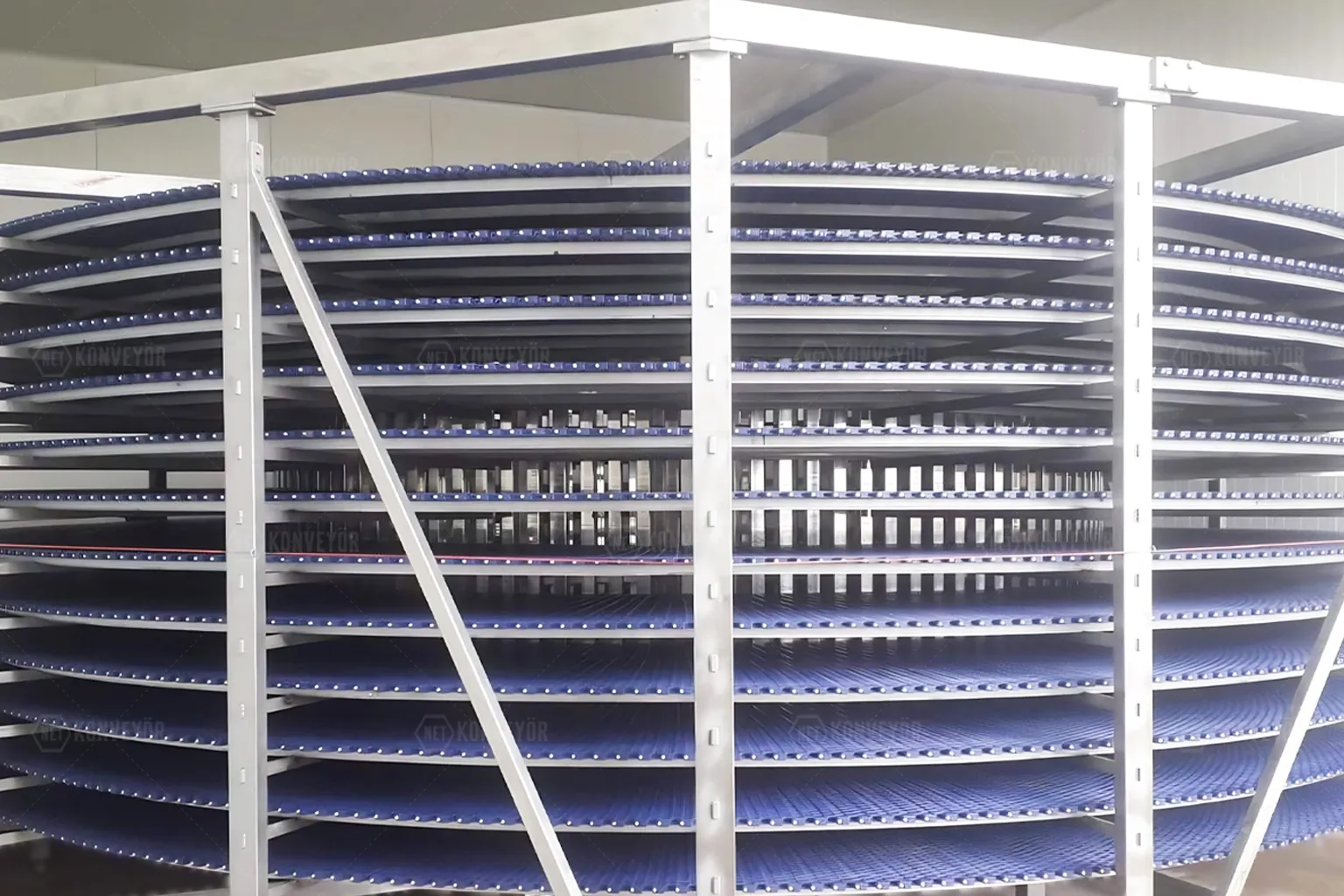

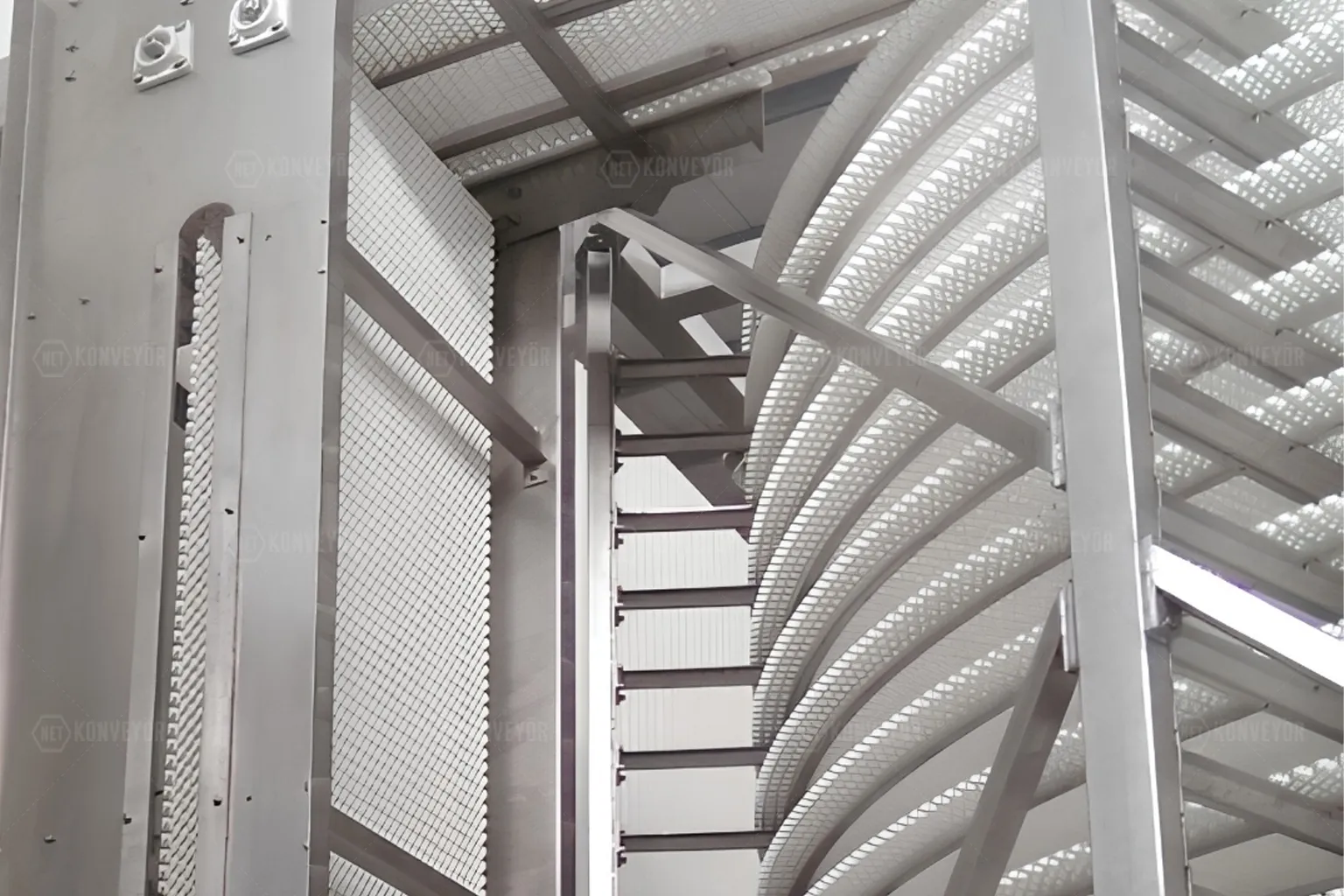

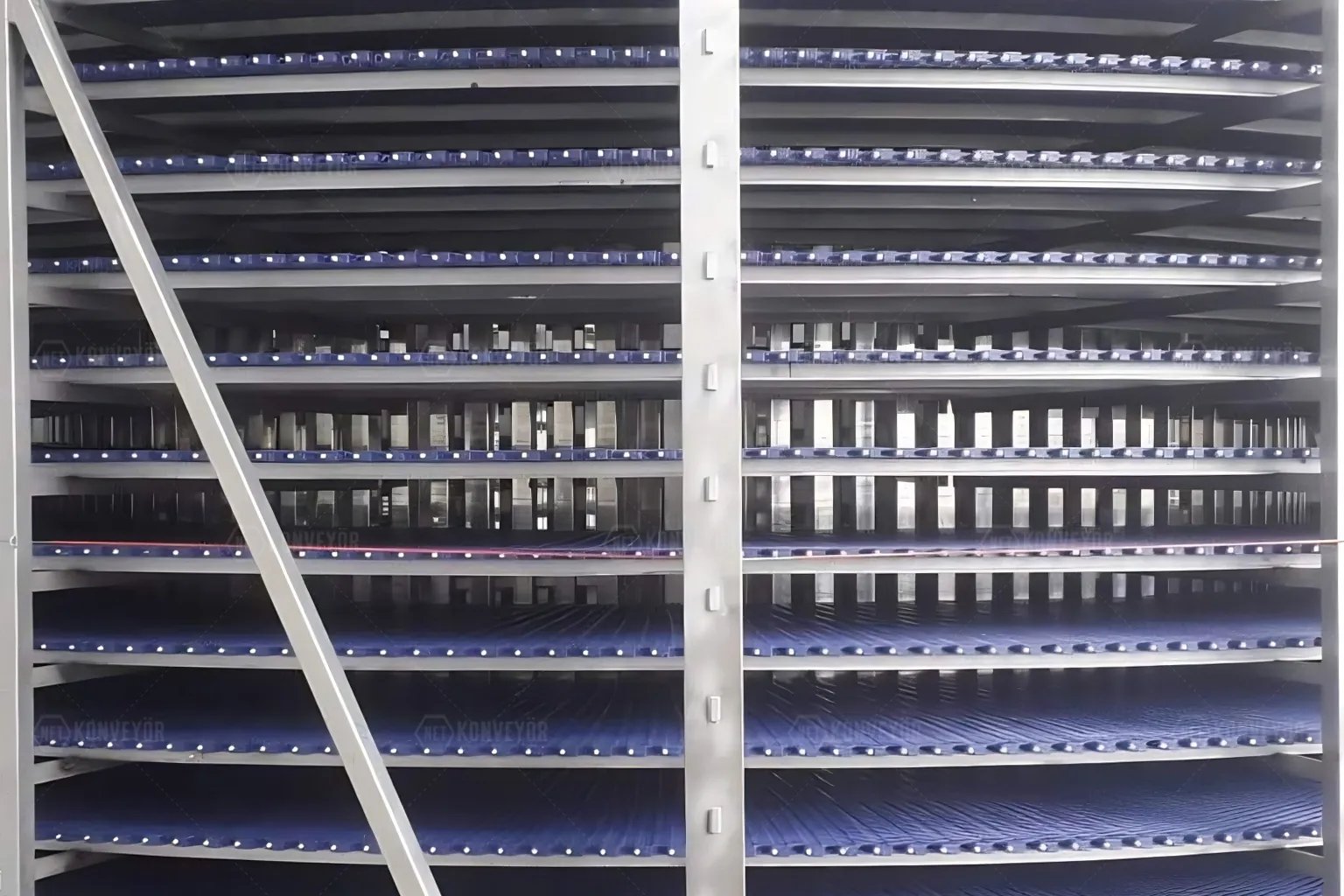

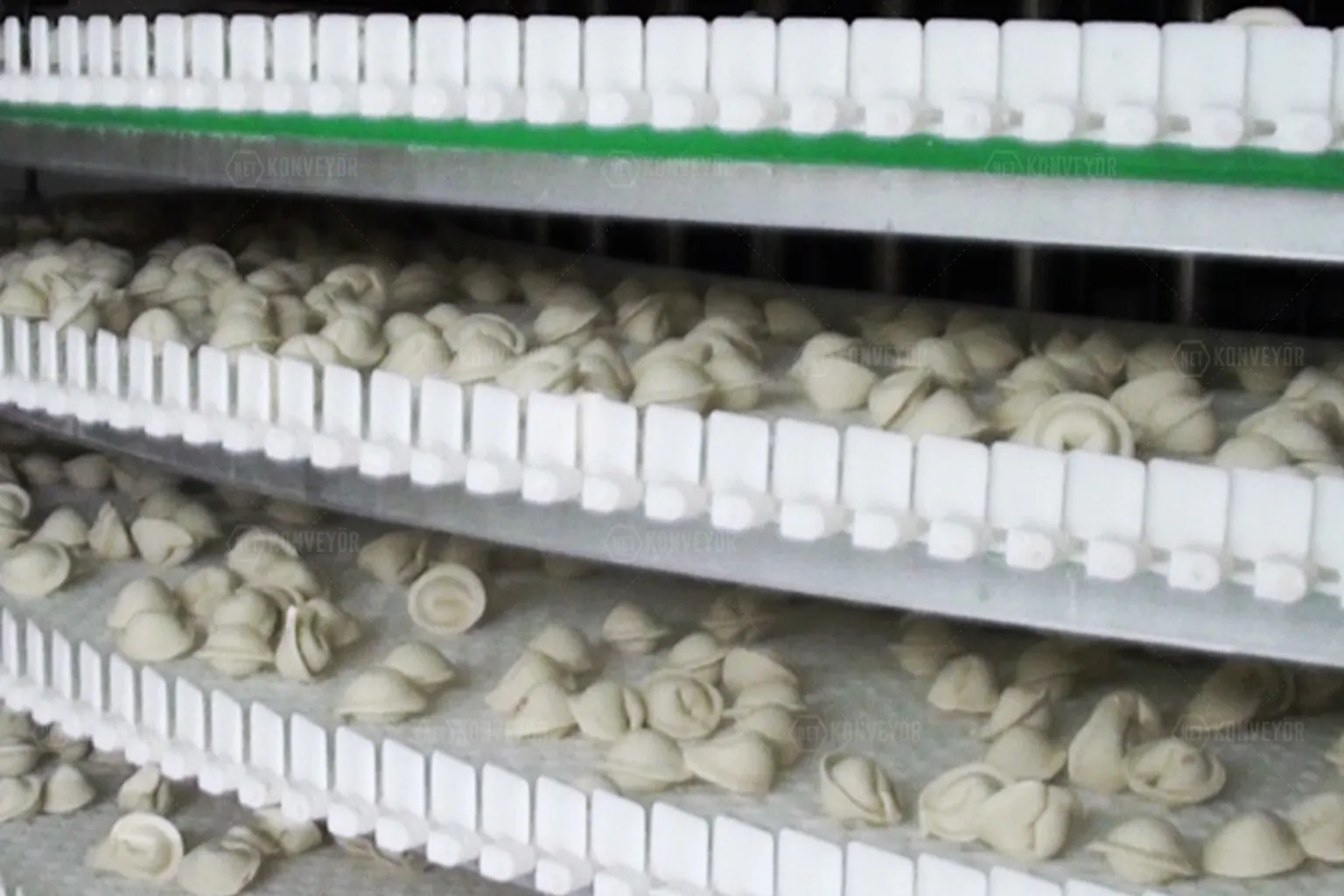

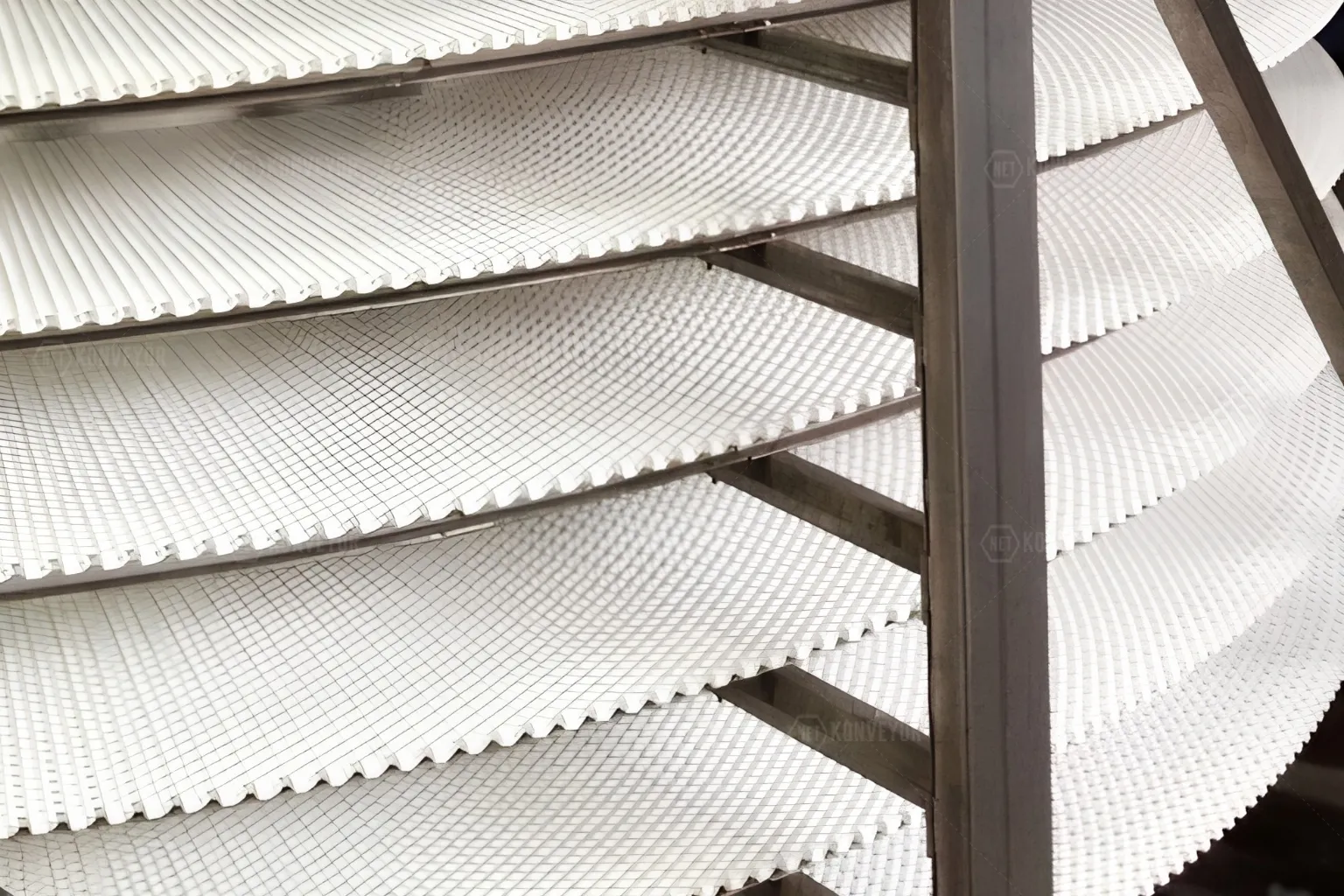

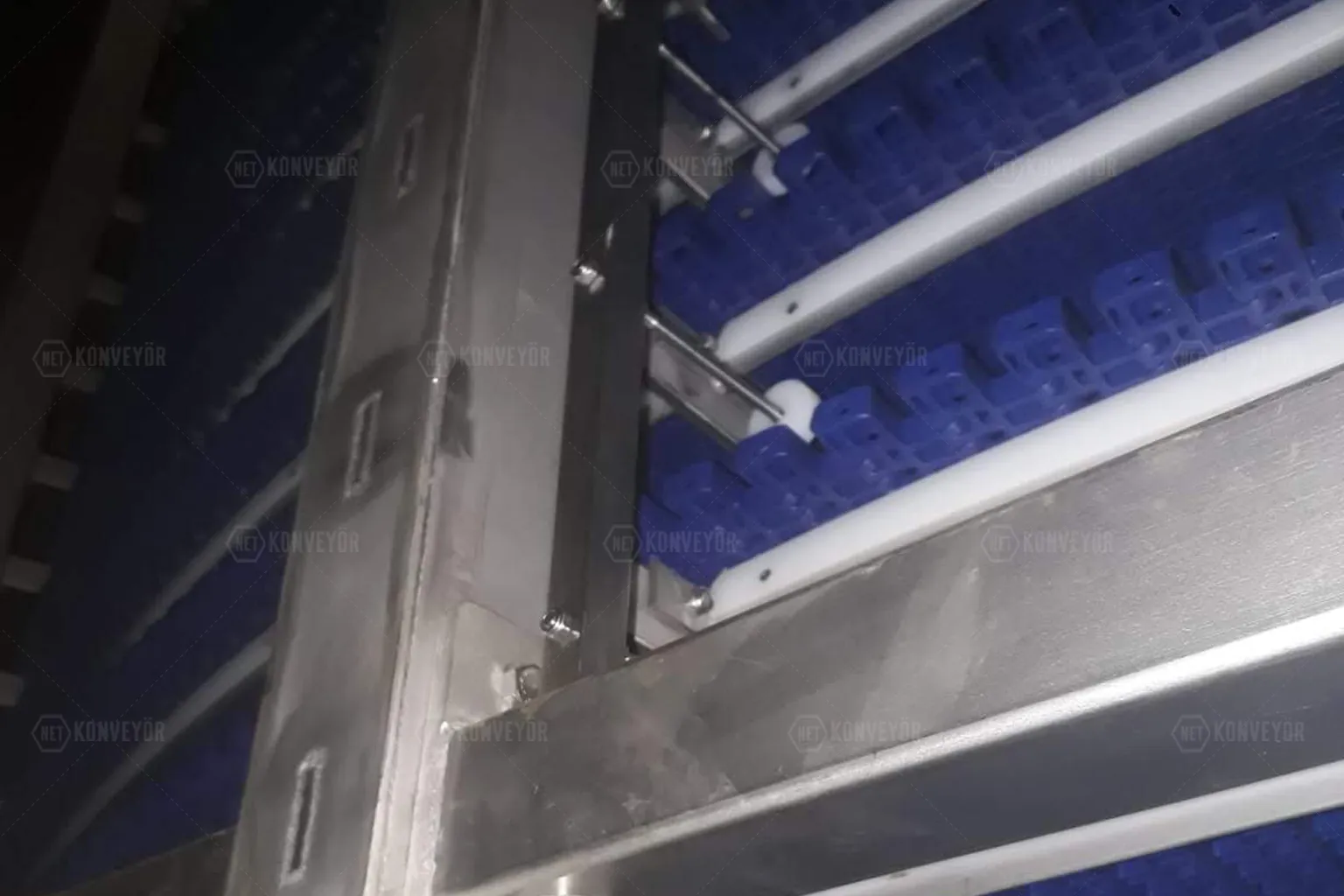

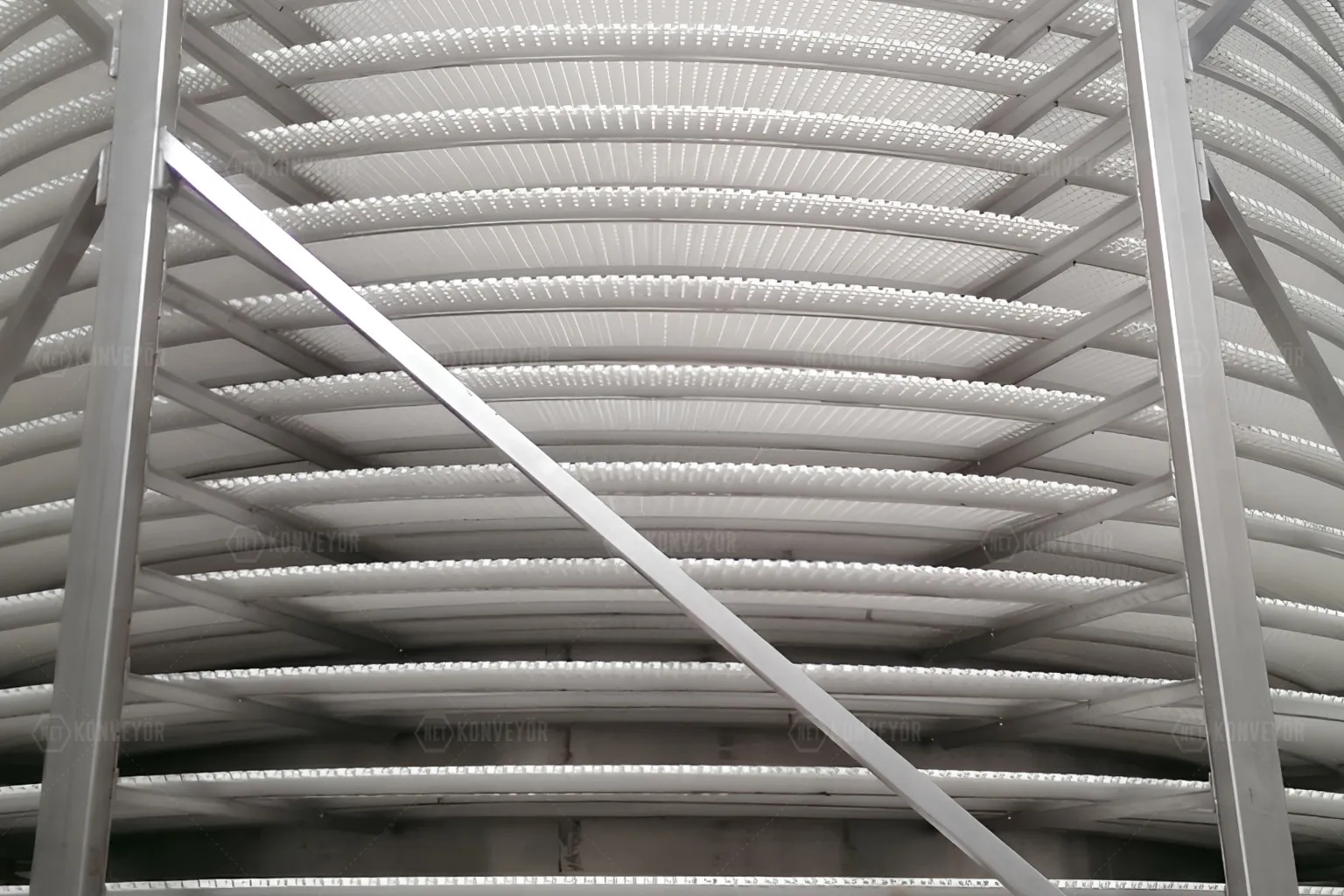

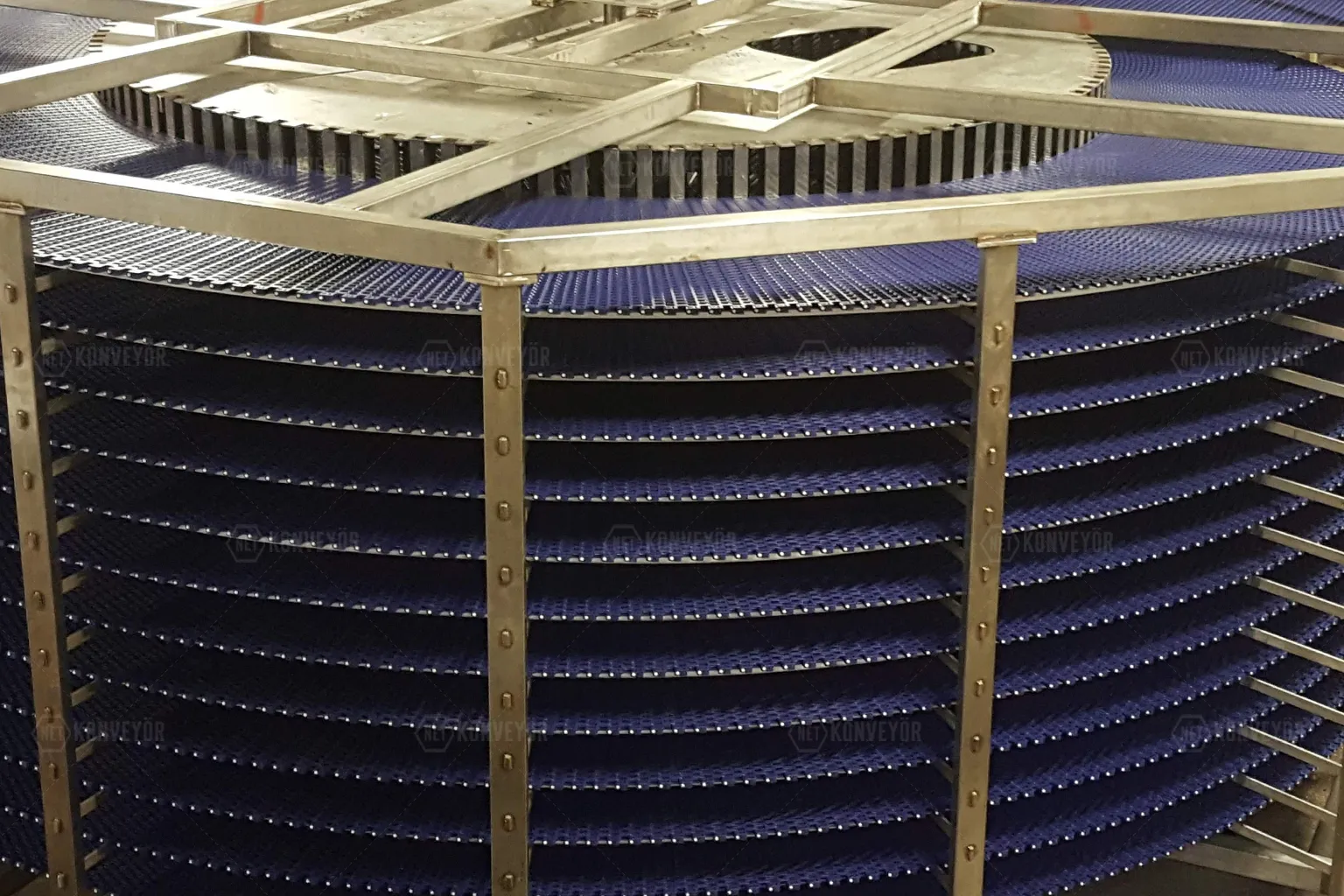

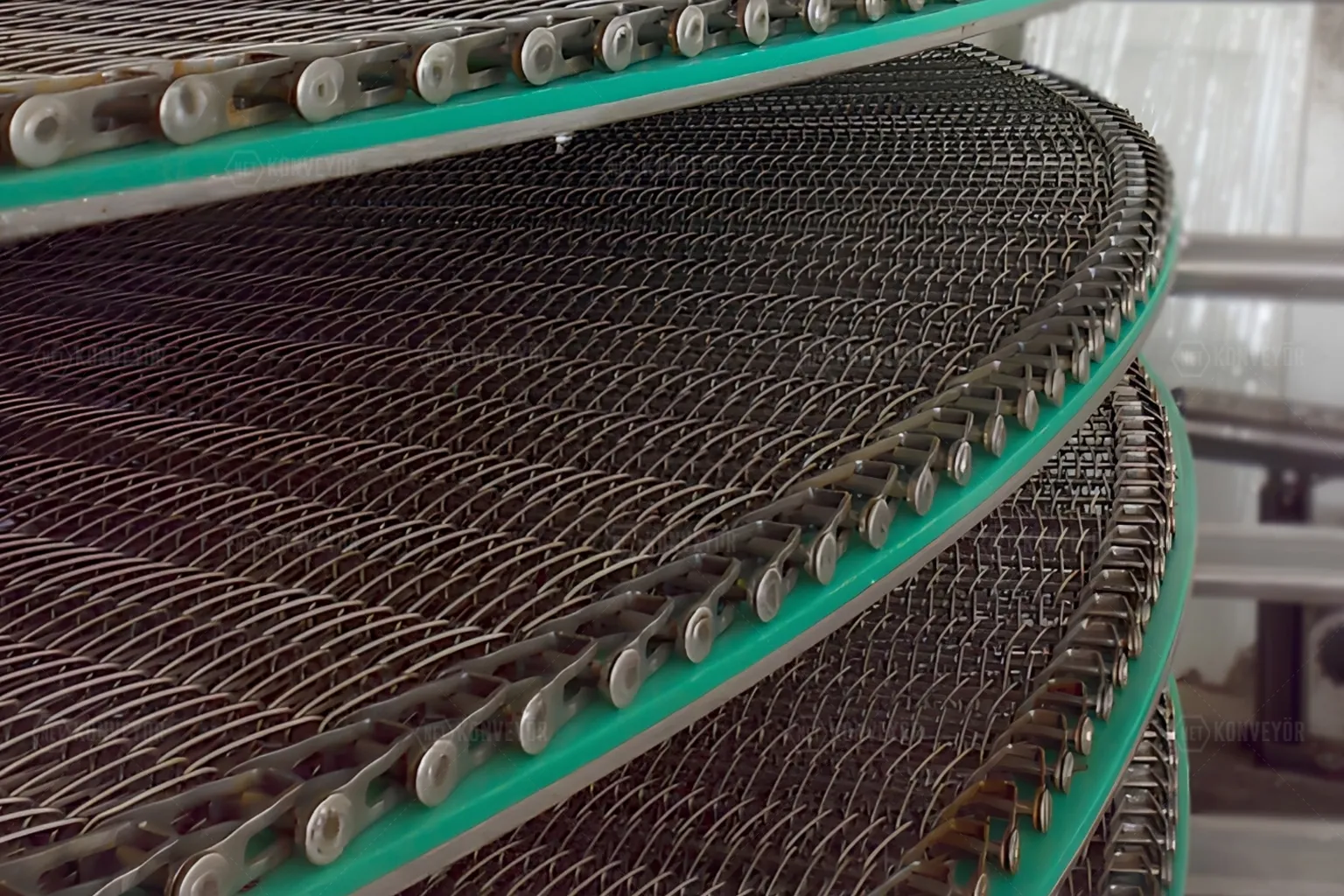

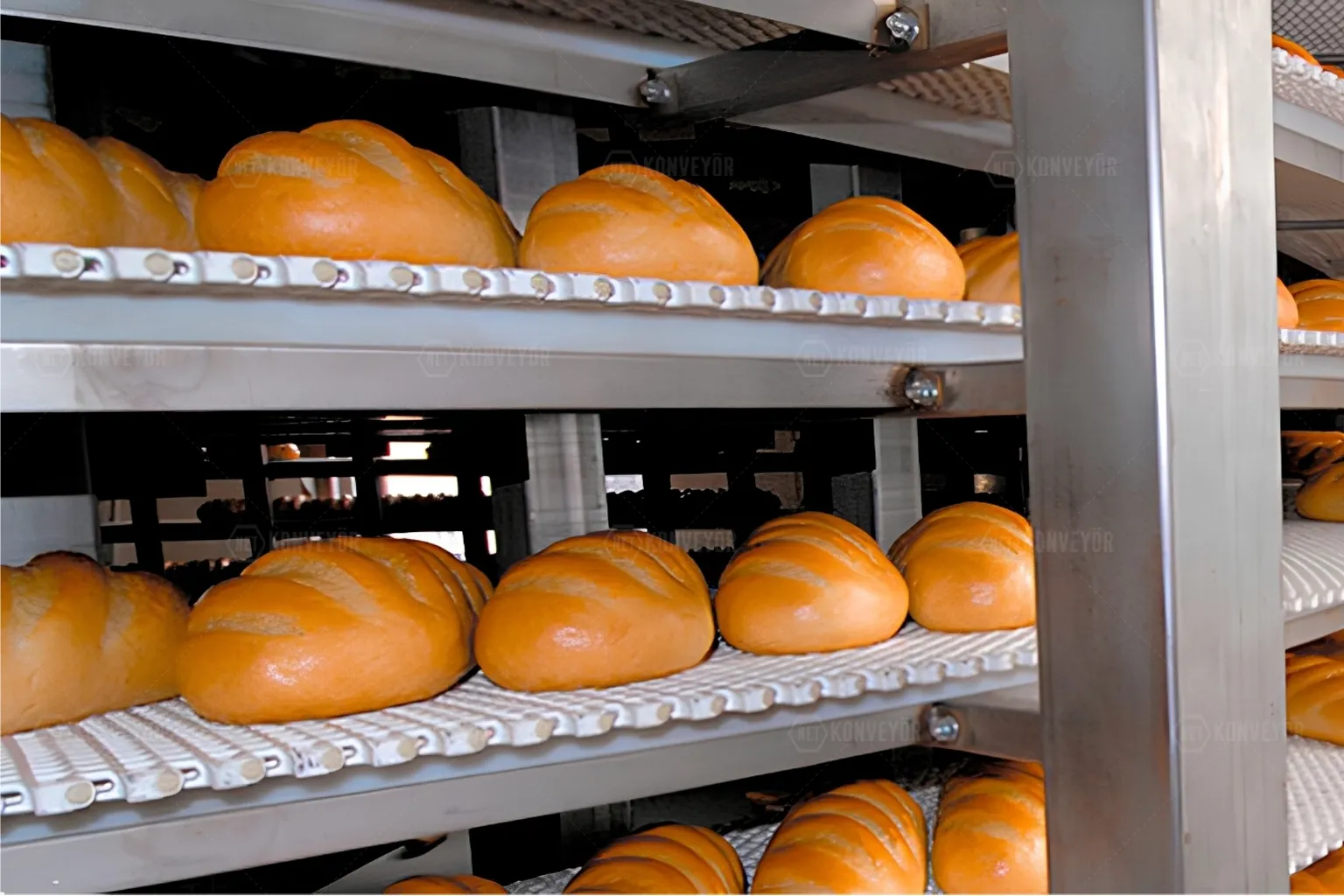

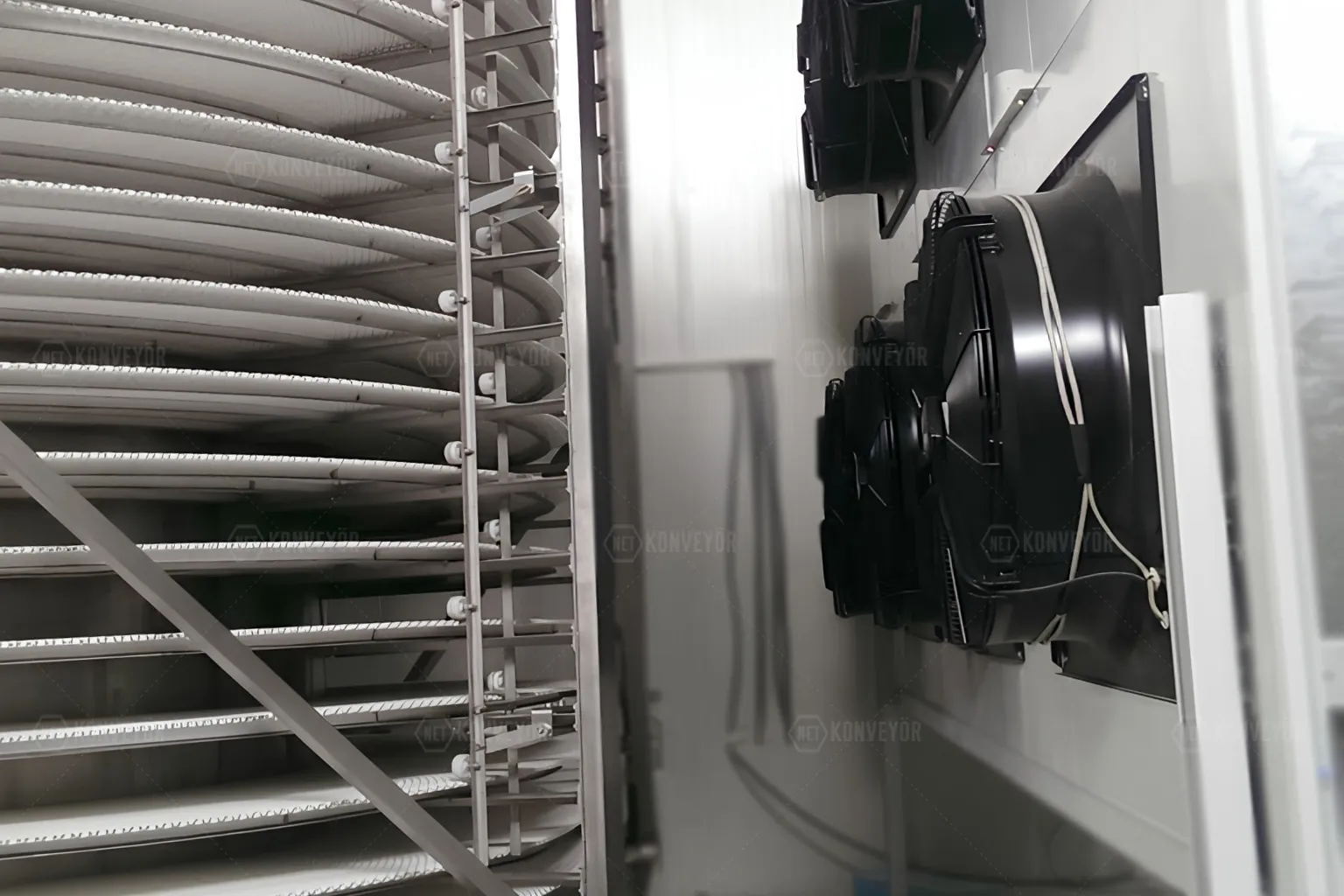

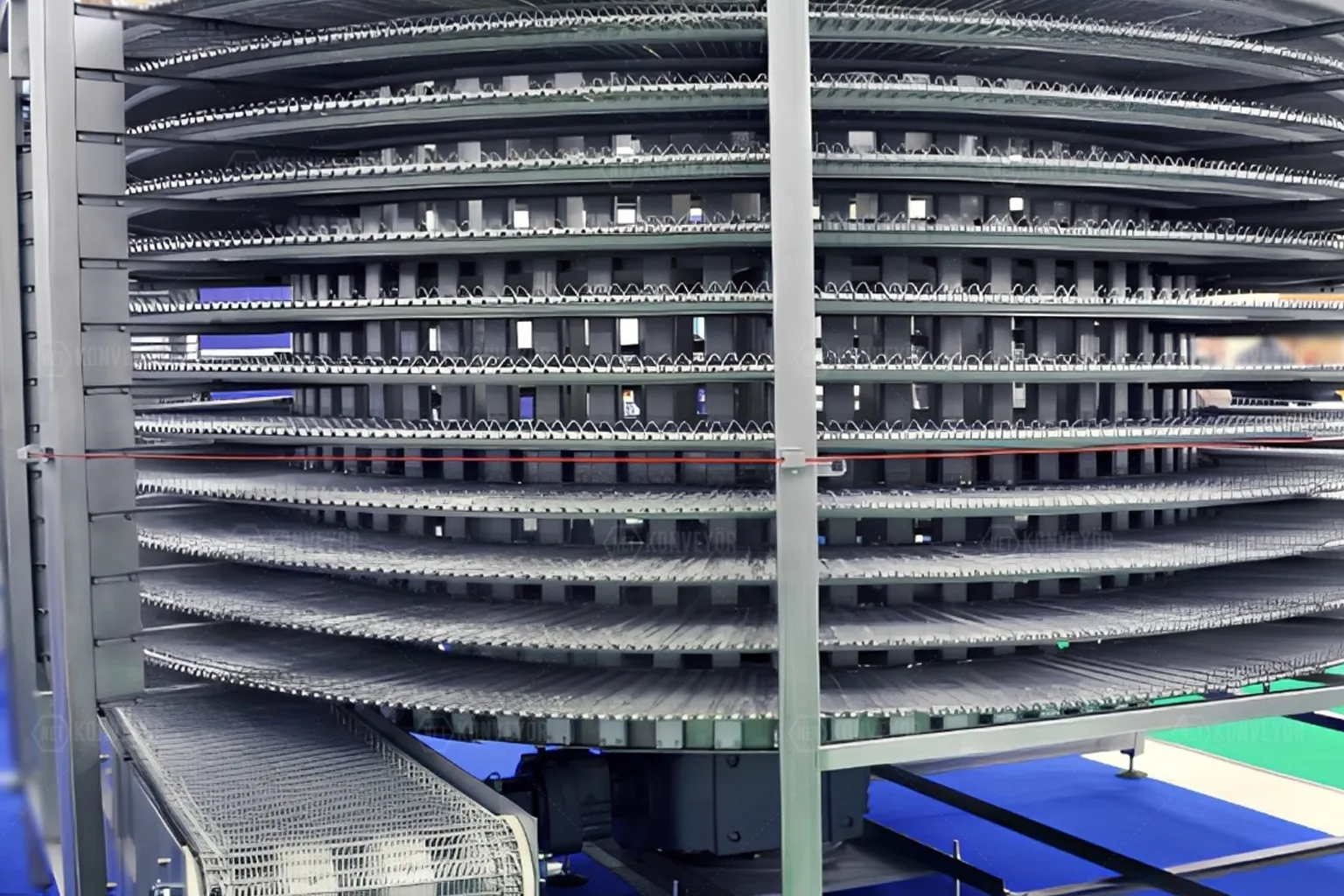

GALLERY

DETAILED INFORMATION ABOUT SPIRAL CONVEYORS

Operating Principle of Spiral Conveyor

Products are fed onto the spiral conveyor line
The conveyor belt moves in spiral tiers
Products are conveyed upward or downward along the tiers
Long travel distance at low speed increases process time
The required process is carried out as the product moves along the line

Spiral Conveyor Features

Multi-tier spiral structure
Compact design (suitable for limited spaces)
Manufactured from stainless steel and engineering plastics
Hygienic and easy-to-clean construction

General Purpose of Spiral Conveyor

Spiral conveyors are used in production processes to save time and improve product quality:

Cooling
Freezing (blast freezing)
Heating
Drying
Steaming
Proofing (fermentation)
Resting (ripening)
